For hand-held circular saws
Outer diameter mm
Number of teeth
Width of cut (b1) mm
Choose a pack size
Outer diameter mm 165
Number of teeth 24
Width of cut (b1) mm 2.6
Choose a pack size 1 Pcs

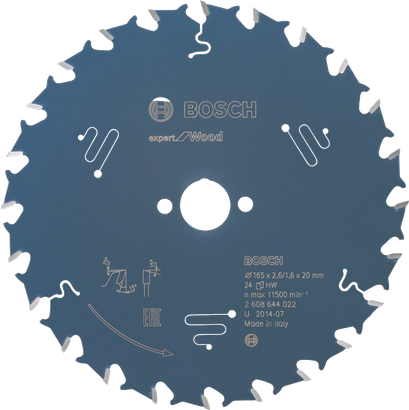

Expert for Wood Circular Saw Blade offers a long lifetime with high cutting performance in wood
Available product options: 5
|
Part number
|
Outer diameter mm
|
Bore size mm
|
Width of cut (b1) mm / Base bl. thickness (b2) mm
|
Number of teeth
|
Pack quantity
|
Price
|
|
|---|---|---|---|---|---|---|---|---|
| 2 608 644 022 | 165 | 20 | 2.6/1.6 | 24 | 1 Pcs | Find a local dealer | ||
| 2 608 644 024 | 165 | 20 | 2.6/1.6 | 48 | 1 Pcs | Find a local dealer | ||
| 2 608 644 047 | 190 | 30 | 2.6/1.6 | 24 | 1 Pcs | Find a local dealer | ||
| 2 608 644 048 | 190 | 30 | 2.6/1.6 | 40 | 1 Pcs | Find a local dealer | ||
| 2 608 644 050 | 190 | 30 | 2.6/1.6 | 56 | 1 Pcs | Find a local dealer |
out of products
| Part number 2608644022 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 165 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 24 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 11500 |
| Cutting result | Coarse cut |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Part number 2608644024 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 165 |
| Bore size mm | 20 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 48 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 11500 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/6/32.5 |
| Hook angle ° α | 5 |
| Relief angle ° β | 15 |
| Part number 2608644047 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 190 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 24 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 10000 |
| Cutting result | Coarse cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Part number 2608644048 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 190 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 40 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 10000 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | 10 |
| Relief angle ° β | 15 |
| Part number 2608644050 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 190 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.6/1.6 |
| Number of teeth | 56 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 10000 |
| Cutting result | Fine Cut |
| Pin hole/Pitch circle diameter | 2/7/42 |
| Hook angle ° α | 5 |
| Relief angle ° β | 15 |
