For hand-held circular saws
Outer diameter mm
Number of teeth
Width of cut (b1) mm
Choose a pack size
Outer diameter mm 3 options
Number of teeth 3 options
Width of cut (b1) mm 3 options
Choose a pack size 1 Pcs

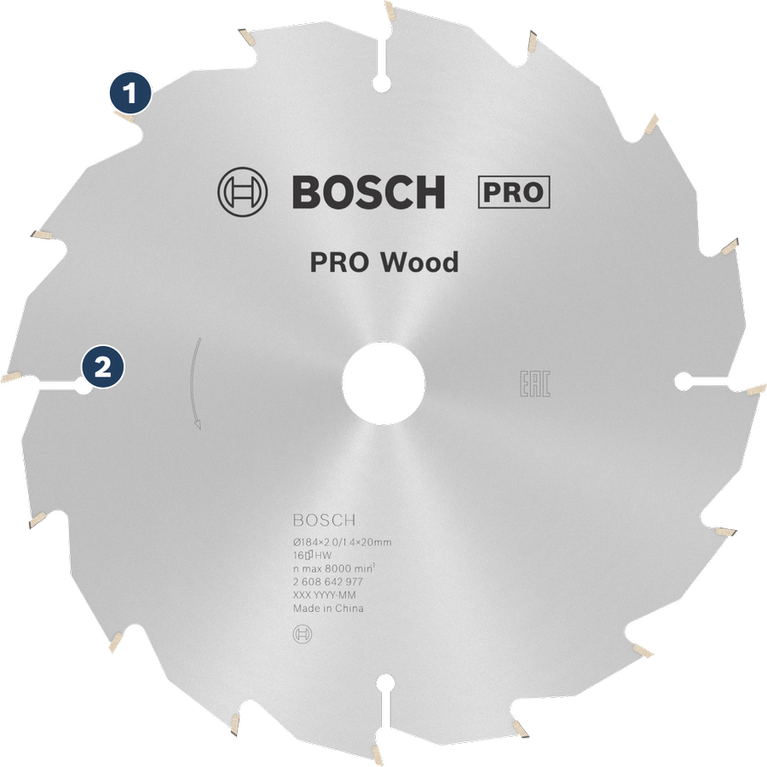

Ground and sharpened fine carbide teeth for strength, durability, and precision
Expansion slots reduce heat for a longer lifetime
The PRO Wood Circular Saw Blade is designed to solve your challenges cutting all types of solid wood and wood-based panel materials. We made it strong and well-balanced to ensure you get clean and accurate cuts – for a long time.
Available product options: 4
|
Part number
|
Outer diameter mm
|
Bore size mm
|
Width of cut (b1) mm / Base bl. thickness (b2) mm
|
Number of teeth
|
Pack quantity
|
Price
|
|
|---|---|---|---|---|---|---|---|---|
| 2 608 642 984 | 184 | 25 | 2/1.4 | 40 | 1 Pcs | Find a local dealer | ||
| 2 608 642 985 | 184 | 25 | 2/1.4 | 60 | 1 Pcs | Find a local dealer | ||
| 2 608 643 000 | 235 | 35 | 2.2/1.5 | 60 | 1 Pcs | Find a local dealer | ||
| 2 608 643 071 | 85 | 15 | 1.1/0.7 | 20 | 1 Pcs | Find a local dealer |
out of products
| Part number 2608642984 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 184 |
| Bore size mm | 25 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2/1.4 |
| Number of teeth | 40 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 8000 |
| Cutting result | Fine Cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Outer diameter inch | 7 1/4 |
| Bore with reduction ring mm | 20 / 19 / 16 |
| Bore with reduction ring inch | 5/8 |
| Part number 2608642985 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 184 |
| Bore size mm | 25 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2/1.4 |
| Number of teeth | 60 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 8000 |
| Cutting result | Fine Cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Outer diameter inch | 7 1/4 |
| Bore with reduction ring mm | 20 / 19 / 16 |
| Bore with reduction ring inch | 5/8 |
| Part number 2608643000 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 235 |
| Bore size mm | 35 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.2/1.5 |
| Number of teeth | 60 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 6500 |
| Cutting result | Fine Cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 15 |
| Outer diameter inch | 9 1/4 |
| Bore with reduction ring mm | 25 |
| Bore with reduction ring inch | 1 |
| Part number 2608643071 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 85 |
| Bore size mm | 15 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 1.1/0.7 |
| Number of teeth | 20 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 18000 |
| Cutting result | Fine Cut |
| Hook angle ° α | 15 |
| Relief angle ° β | 13 |
