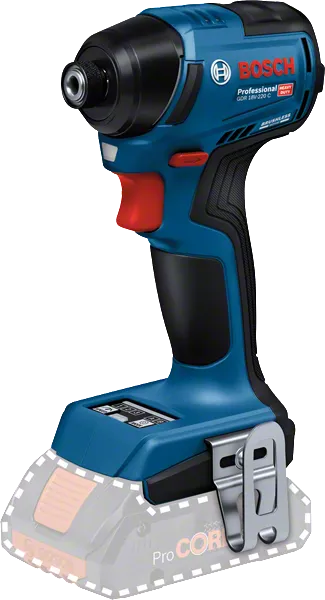

GDR 18V-220 C Professional
Cordless Impact Driver
Full Control for top screwdriving quality across various applications
- Extreme control for high-quality workmanship with A/B default modes and adjust it in the Bosch App
- Handles materials of different hardness thanks to 3-speed selector and variable speeds
- Fast work progress with 3,400 RPM brushless motor and 4,000 impact rate

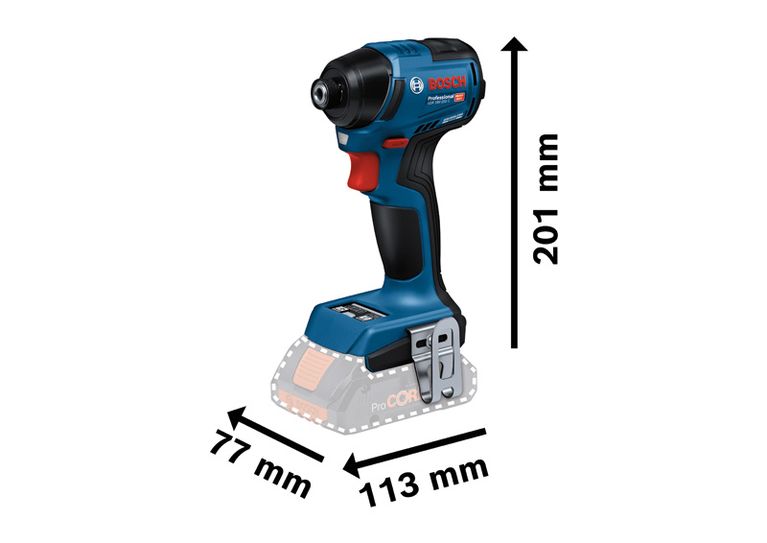

- Works in narrow spaces thanks to compact 113 mm size
- On-demand brighter workplace illumination via dual LED
Functions & key features
GDR 18V-220 C Professional
Your Selection
Order number: 0 601 9L6 0L0
Included in this variant
-
1 x belt clip, 1 x bit holder
-
Cardboard box
Technical data
Additional data |
|
|---|---|
| Battery voltage | 18.0 V |
| Torque, max. | 220 Nm |
| No-load speed (3rd level) | 0-3,400 rpm |
| No-load speed | 0-800 rpm |
| Weight incl. battery | 1.7 kg |
| Tool holder | 1/4'' Hex Uni |
| Torque adjustment range, min./max., 1st level | 0/100 Nm |
| Torque adjustment range, min./max., 2nd level | 0/140 Nm |
| Torque adjustment range, min./max., 3rd level | 0/220 Nm |
| No-load speed (1st level) | 0-800 rpm |
| No-load speed (2nd level) | 0-2,300 rpm |
| Torque settings | 3 |
| Weight excl. battery | 1 kg |
| Impact rate | 4,000 bpm |
| Impact rate (1st level) | 0-1,500 bpm |
| Impact rate (2nd level) | 0-3,400 bpm |
| Impact rate (3rd level) | 0-4,000 bpm |
The A-rated noise level of the power tool is typically as follows: Sound pressure level dB(A); Sound power level dB(A). Uncertainty K= dB.
* You can find more information about the deviations in the following link:
GDR 18V-220 C Professional: Further information
Equipment & Application
When fastening screws in sheet metal or wood, inadequate control can lead to damaged workpieces and bits. The Bosch GDR 18V-220 C cordless impact driver ensures that you have the control. It has three selectable speed settings and two default modes that improve screwdriving quality. To work effectively with different materials of varying hardness, change torque using the speed selector or control speed via variable speed. Adjust tool power by pressing one of two default screw modes (A+B) that help to prevent damage before it occurs. When the tool is connected to the Bosch APP, you can further control the A/B modes to automatically shut down or slow down when screws are tighten. You’ll be won over by the high-performance of this impact driver, especially when doing time-consuming tasks like driving in long screws. That’s because the brushless motor and advanced impact mechanism deliver 220 Nm torque, 4000 IPM and up to 3400 RPM
