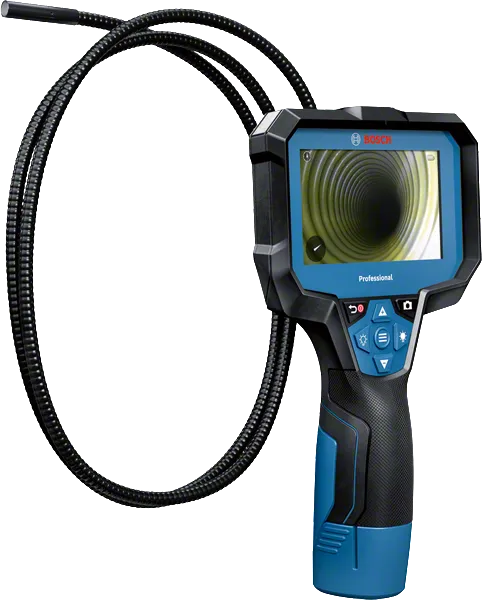

GIC 4-23 C Professional
Inspection Camera
High-resolution camera for quick and easy inspection and documentation
- High resolution of 800 x 480 pixels ensures clear picture quality on big 4.3” screen
- The convenient Up Indication always points up for optimal user orientation
- Ideal on tough jobsites thanks to IP ratings for dust and water protection
Functions & key features
Your Selection
- with 4 x battery (AA), hook magnet
GIC 4-23 C Professional
Your Selection
Order number: 0 601 241 5K0

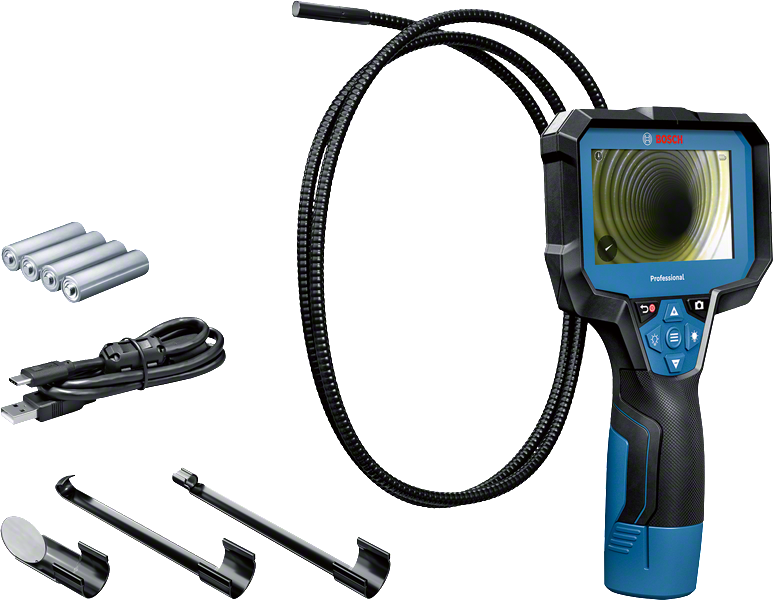

Included in this variant
-
AA1 alkaline battery adapterOrder number: 1 608 M00 C1B
-
Camera cable for GIC, 8.3 mm diameter, 1.5 m lengthOrder number: 1 600 A02 R6M
-
Hook, magnet, mirror
-
4 x 1.5 V LR6 battery (AA)
-
Pouch
-
USB-C® Cable
Technical data
Additional data |
|
|---|---|
| Display size | 4.3 " |
| Display resolution | 800 x 480 px |
| Diameter of camera head | 8.3 mm |
| Length of camera cable | 150 cm |
| Field of view (FOV) | 75 ° |
| Focus distance | 30 - 80 mm |
| Documentation via | Photo |
| Photo resolution | 1280 x 720 |
| Data Transfer | USB-C® |
| Dust and splash protection, camera cable | IP 67 |
| Dust and splash protection, tool | IP 54 |
| Max. 30 min immersion for camera cable in | diesel, petrol, engine oil, AdBlue®, ethyl alcohol, salt water (26,5% salt content) |
| Weight | 0.7 kg |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
GIC 4-23 C Professional: Further information
Product Highlights
The GIC 12V-4-23 C Professional inspection camera is the ideal tool for HVAC/plumbers, car mechanics, or electricians. It has a large 4.3” monitor that displays clear, high-definition images of 800 x 480 pixels, enabling quick and intuitive analysis of pipes, ducts, or other hard-to-reach areas. Image orientation is easily determined thanks to the handy Up Indication feature that always points upwards. This ergonomic camera is robustly designed for use on tough jobsites and hard-to-reach spaces. It comes with an IP67 rating for the camera head, protecting it from dust and short periods of immersion in water, and IP54 dust and splash water protection for the tool.
Equipment & Application

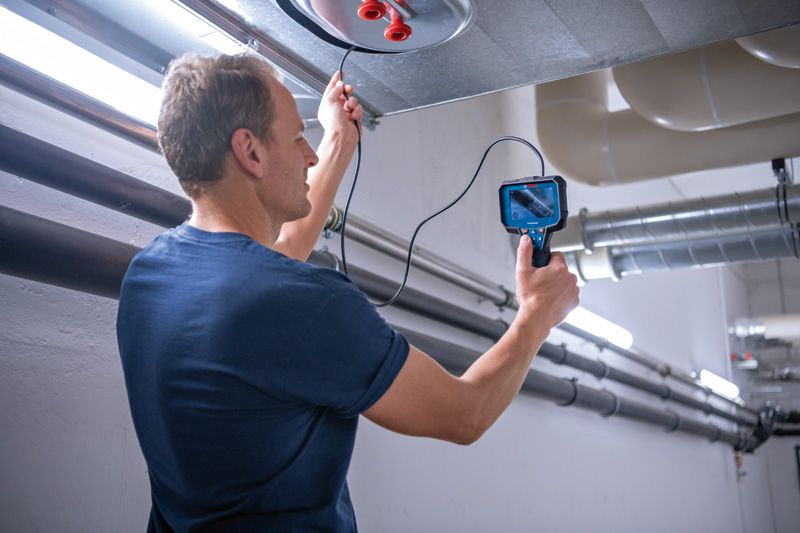

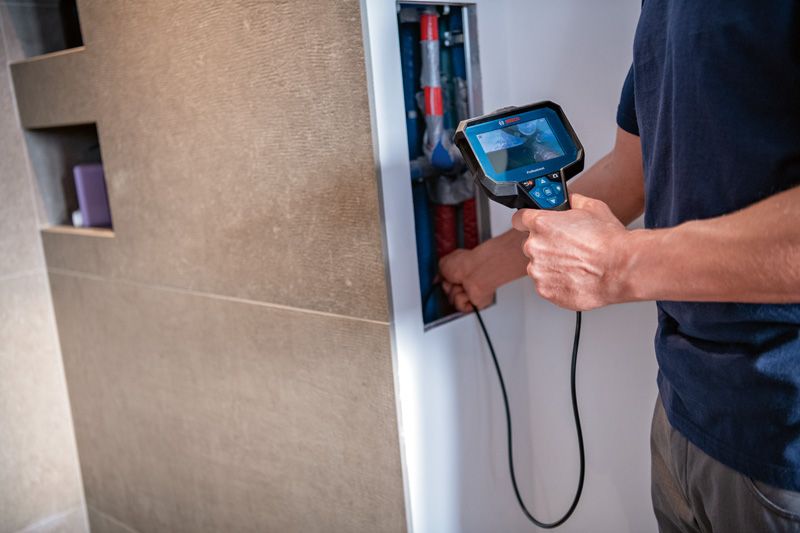

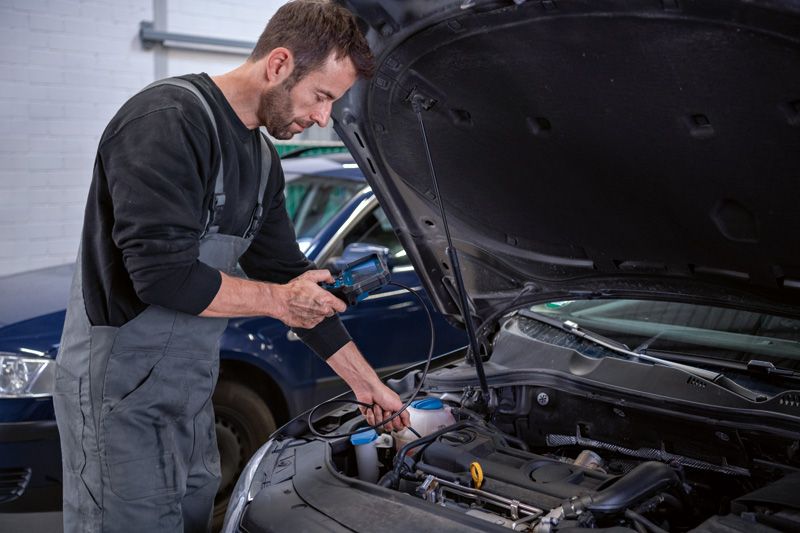

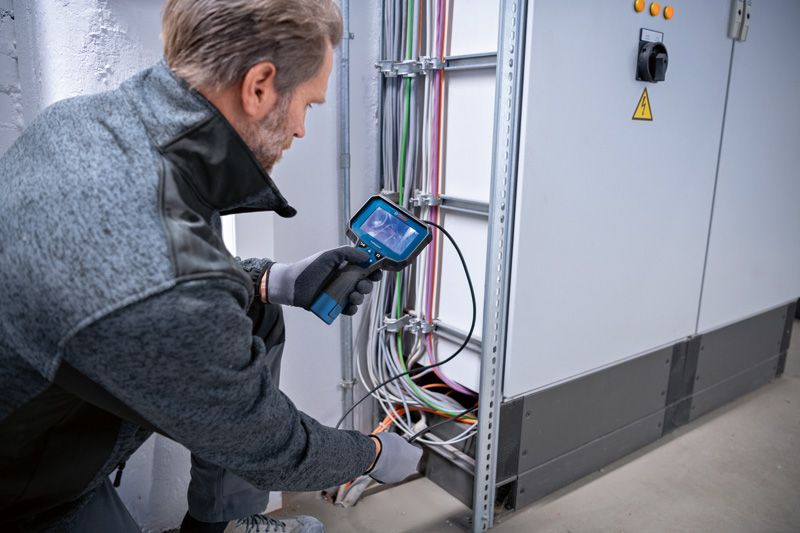

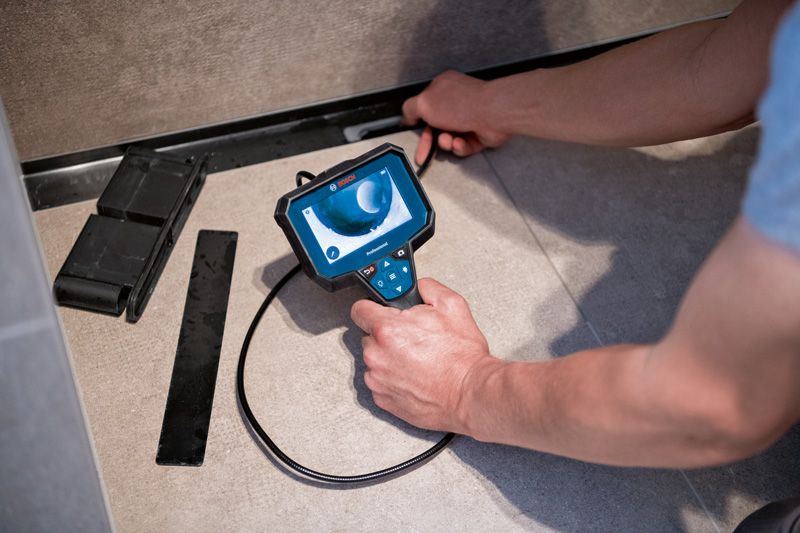

This inspection camera is ideal for multiple tradespeople applications such as inspecting the interior of distribution boxes, pipes, and wall cavities as well as for hydraulic systems and applications in the automotive sector.
Additional Information
Photos taken with the GIC 12V-4-23 C Professional are easily transferred via USB-C® cable.
