GLL 50-15 XG Professional
Line Laser
Simple and Versatile For Your Everyday Levelling Application
- Green Laser Technology ensures excellent visibility even in brighter conditions
- Intuitive user-friendly HMI control made for user simplicity
- Detachable rotating platform enables precise laser lines position
Functions & key features
Your Selection
- in carrying bag
Currently not available online
Find a local dealer
GLL 50-15 XG Professional
Your Selection
New
Order number: 0 601 065 7K0

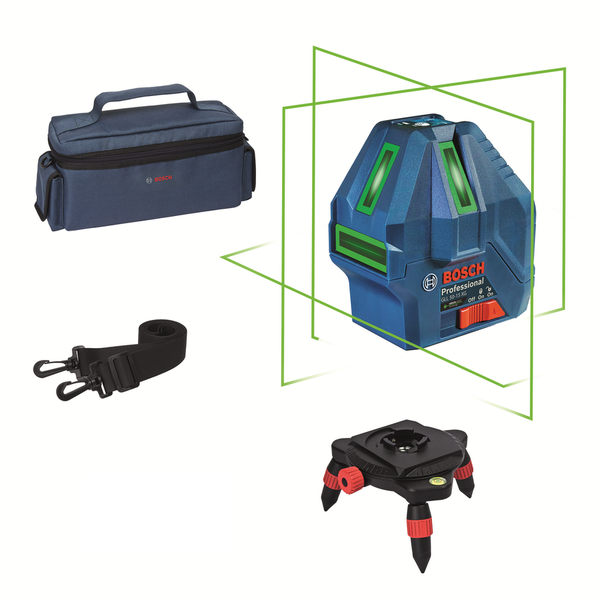

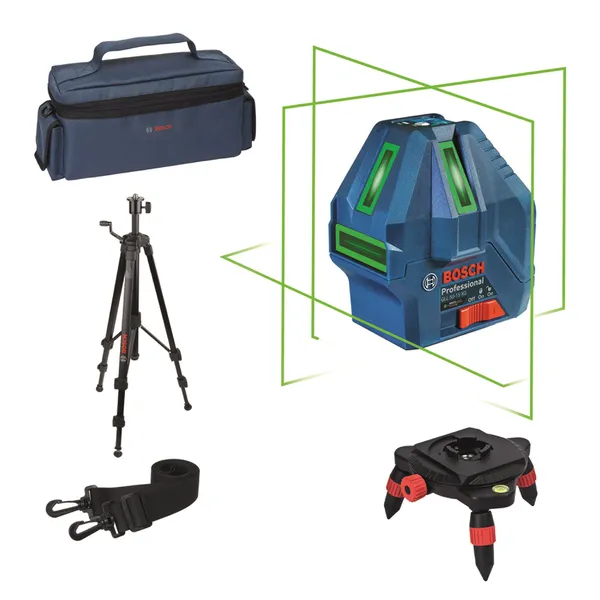

Included in this variant
-
1 x shoulder strapOrder number: 2 608 000 706
-
Carrying bag
Technical data
Additional data |
|
|---|---|
| Colour of laser line | green |
| Laser diode | Line: 500 – 540 nm, < 10 mW, Point: 630 – 650, < 1 mW |
| Operating temperature | -10 – 45 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 2 |
| Working range | 15 m |
| Working range with receiver | 0 m |
| Accuracy | Horizontal laser line: ± 0.2 mm/m* ; Vertical laser lines: ± 0.3 mm/m* (*plus use-dependent deviation) |
| Working range of laser points, max. | 5 m (bottom) |
| Self-levelling range | ± 3° |
| Levelling time | 4 s |
| Dust and splash protection | IP 54 |
| Power supply | 4 x 1.5 V LR6 (AA) |
| Tripod thread | 5/8" |
| Weight, approx. | 0.5 kg |
| Color of plumb points | red |
| Working range, value | 15 m |
| Working range with receiver, value | 0 m |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
GLL 50-15 XG Professional: Further information
Product Highlights

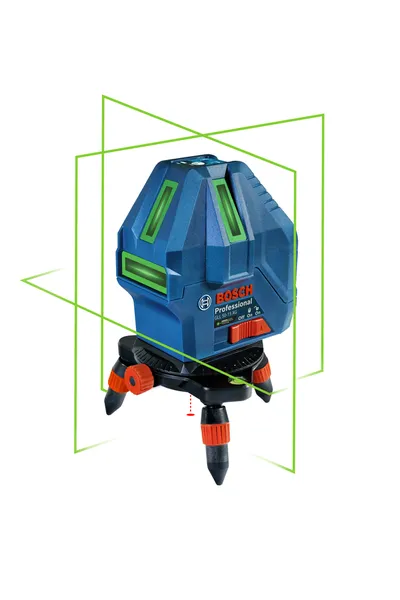

Effortlessly achieve precise levelling results with the GLL 50-15 XG Professional. Featuring Bosch Green Laser Technology, the green laser lines offer up to four times better visibility than red laser line, making it the versatile levelling solution. Thanks to the intuitive user-friendly HMI control, it enables you to stay focused on the job at all times. The tool also offers IP 54 rated protection to withstand splash water and dust in tough jobsites.
Equipment & Application

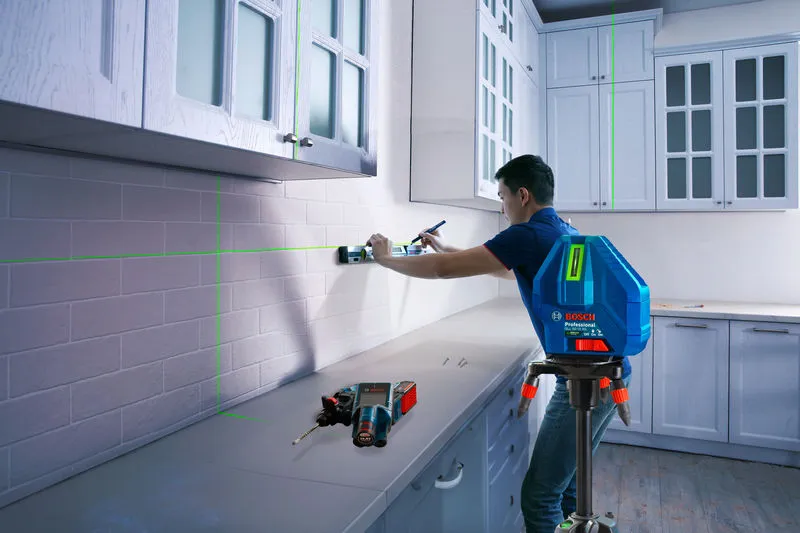

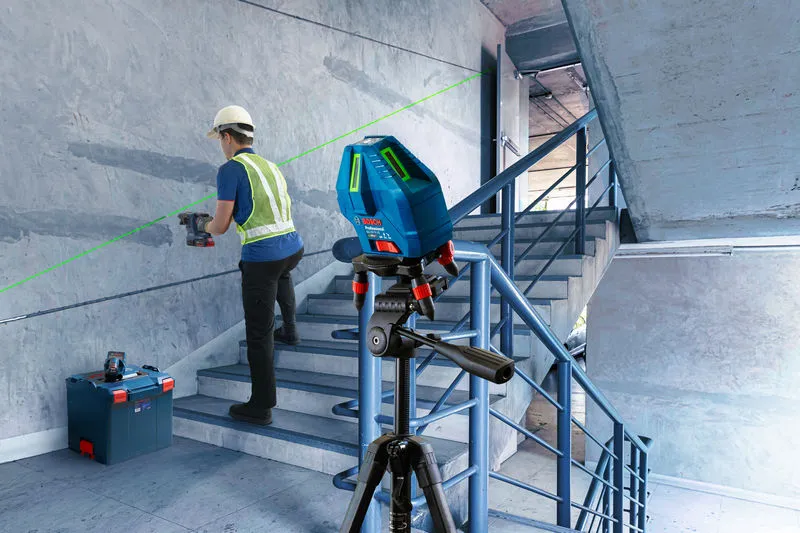

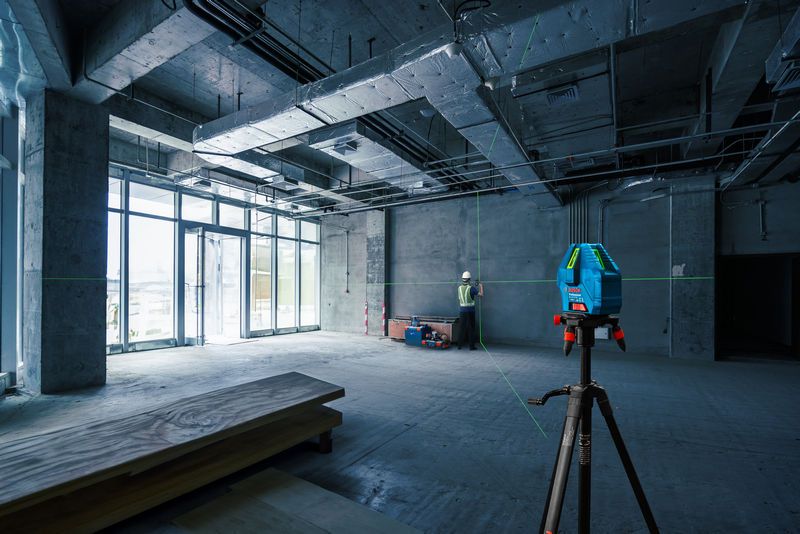

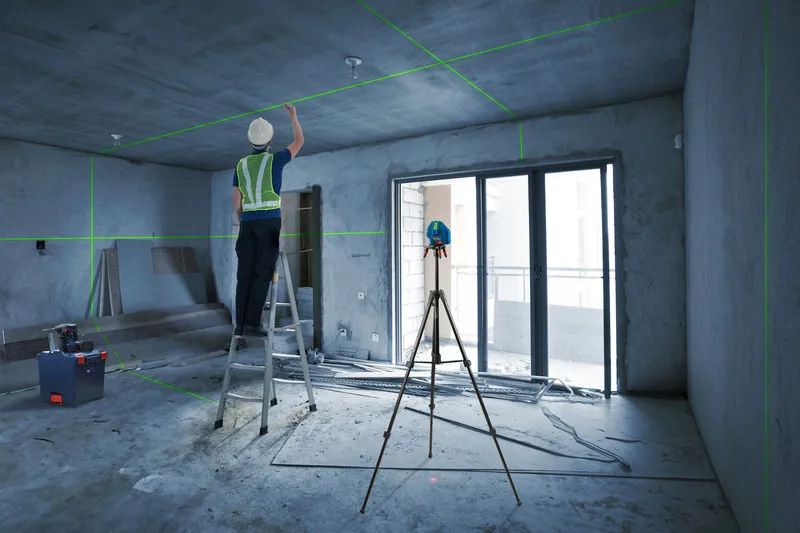

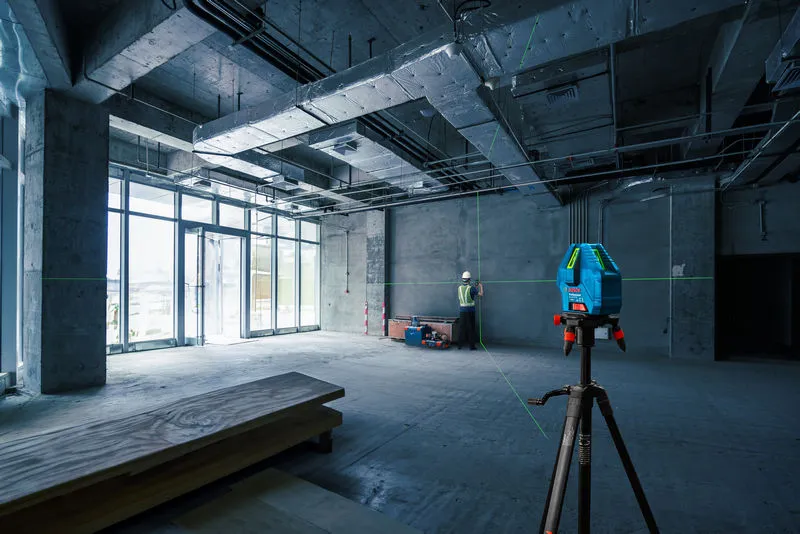

The GLL 50-15 XG Professional delivers exceptional performance of up to 50m with LR 7 receiver. The detachable rotating platform allows precise adjustment of laser lines position while keeping the red plumb point static, permitting it ideal for tasks like drywall installation, tile laying and interior finishing.
Additional Information

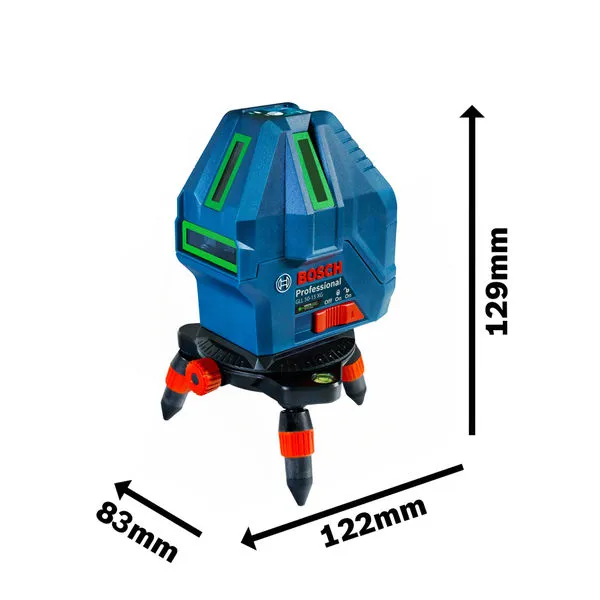

With the compact housing design and standard carrying bag, it become so easy to carry around jobsites. This makes the GLL 50-15 XG your great companion to tackle various levelling tasks.
